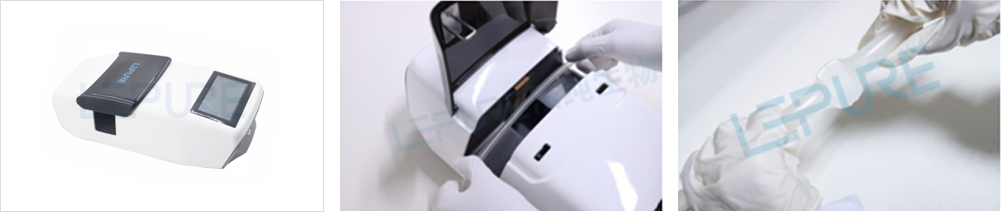

Aseptic Sealer

  • Dry or liquid aseptic sealing operation
  • tube outer diameters range : 1/4" ~ 1-3/8“
  • Heat sealing time Approximately 2-3.5 min
  • Dimensions L*W*H：400mmX130mmX190mm

Technical parameters

Aseptic Sealer
Power supply 220 VAC 50 HZ
Rated power 200 W
Dimensions L*W*H : 400mm X 130mm X 190mm
Net weight About 5.7 KG
Ambient temperature +5℃ ~ 40℃
Heat sealing time Approximately 2-3.5 min
Altitude < 2000 M
Protection grade IP32
Material ABS + PMMA + SUS304

Ordering Information

Order number UNIT
BDAA0001 1 set

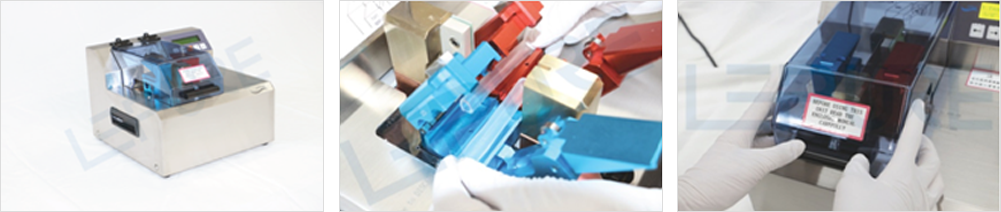

Aseptic Welder

Technical parameters

Aseptic Welder
Item Specific parameters
Power requirements AC 220 V 50Hz
Power 300W
Heat sealing time 1-1.5 min, depending on the tube size
Specifications and models of applicable tubing TPE welded tubes (Saint-Gobain C-Flex and 082 seriers, LePure Biotech Le-Flex series)
Outer diameter 6.4 mm -19.1 mm (1/4"-3/4")
Wall thickness 1.6 mm-3.2 mm(1/16"-1.8")
External dimensions 320*320*220 mm(L*W*H)
Net weight 12 kg
Working enviroment Ambient temperature 20-26℃ and humidity 35-65% RH
Material Body : 304 stainless steel; components : aviation aluminum alloy;
Clamp : aviation aluminum alloy

Ordering Information

Aseptic Welder
Equipment Article No.
Sterile tubing welder JGJ-JS996
Sterile tubing welder (with liquid) JGJ-JS969
Product accessories
Blade JS-DP-083

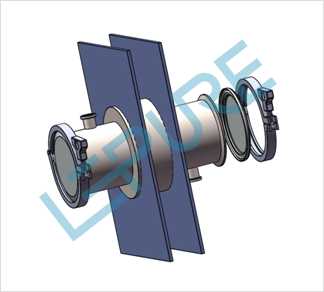

Leclean Pass System

  • Hose transmission between different clean rooms
  • Transfer of sterile solutions across levels and within the same level
  • Fluid transmission in a single or multiple tubes simultaneously

Ordering information

Article No. Configuration
LCP119-01 LeClean Pass stainless steel mouting parts with vent
LCP119-02 LeClean Pass stainless steel mouting parts without vent
LCP119-03 LeClean Pass single-tube 3/8" * 5/8" + silicone one-piece gasket, 6" at each end
LCP119-04 LeClean Pass double-tube 3/8" * 5/8" + silicone one-piece gasket, 6" at each end

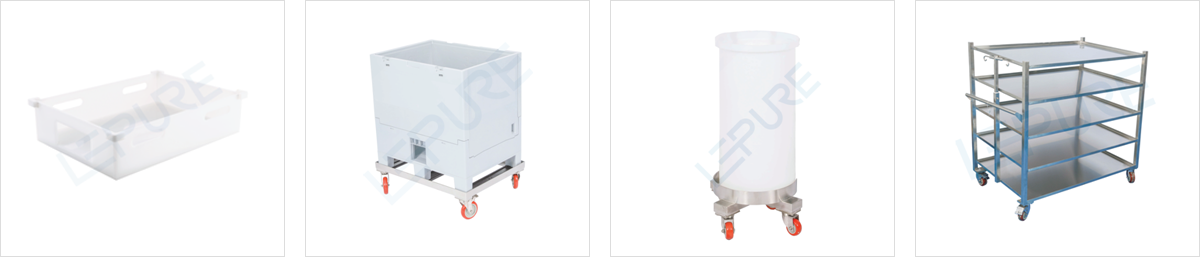

Transportation Tool

  • LEZ-TRANS series transport tools are designed for 2D and 3D storage bags and suitable for different volumes.
  • Different shapes of storage bags are provided with different transport tools to achieve flexible transportation.
