Technical Parameters

LePure Sterilizing Capsule Filter
Technical Specifications 2" 4" 5" 10"
Effective Filtration Area (m2) 0.13 0.23 0.33 0.66
Membrane Pore Size (μm) 0.2 0.2 0.2 0.2
Composition Materials
Filter Membrane PES (polyether sulfone) PES (polyether sulfone) PES (polyether sulfone) PES (polyether sulfone)
Cartridge Housing Polypropylene Polypropylene Polypropylene Polypropylene
Capsule Housing Polypropylene Polypropylene Polypropylene Polypropylene
O ring Silicone Silicone Silicone Silicone
Membrane Protective Layer Polypropylene Polypropylene Polypropylene Polypropylene
Max. Allowable Differential Pressure
(at room temperature)		 Max. Allowable Positive Pressure: 5 bar
Max. Allowable Back Pressure: 2.5 bar
Fiber Release Conforming to the “No fiber release” requirement in 21 CFR 210.3 (b) (6).
Bacteria Retention According to ASTM test method, retention test for 107 CFU/cm2pseudomonas diminuta (ATCC 19146) is passed.
Endotoxin Conforming to USP <85>, Endotoxin content < 0.25 EU/mL
Biocompatibility USP <87> and USP <88> tests are passed
Autoclave 123°C - 30 min - 3 Cycles
Gamma Irradiation 25-40 kGy

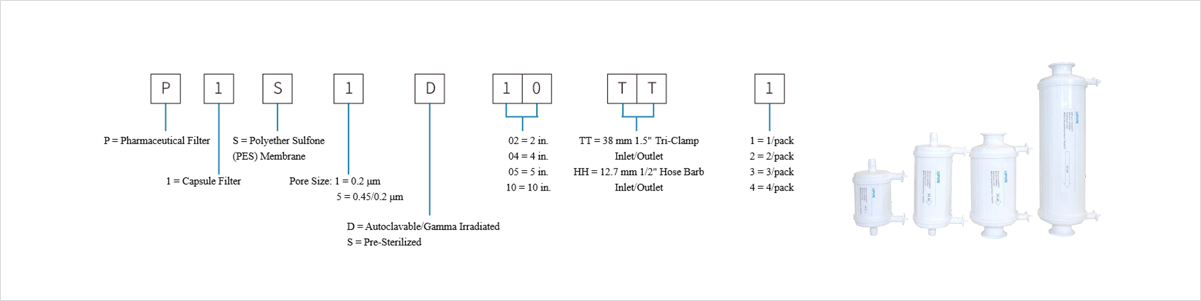

Ordering Information

Catalogue No. Filter Type / Size / DescriptionCatalogue No. Bubble Point
(MPa) 		 Diffusion Flow
(ml/min@0.280MPA)		 Catalogue No.
P1S1D10--1 PES Material, Pore Size 0.2 μm, 10" 0.34 25 1/pack
P1S1D05--1 PES Material, Pore Size 0.2 μm, 5" 0.34 15 1/pack
P1S1D04--3 PES Material, Pore Size 0.2 μm, 4" 0.34 8.9 3/pack
P1S1D02--4 PES Material, Pore Size 0.2 μm, 2" 0.34 5.4 4/pack
P1S1S10--1 Pre-Sterilized, PES Material, Pore Size 0.2 μm, 10" 0.34 25 1/pack
P1S1S05--1  Pre-Sterilized, PES Material, Pore Size 0.2 μm, 5" 0.34 15 1/pack
P1S1S04--3 Pre-Sterilized, PES Material, Pore Size 0.2 μm, 4" 0.34 8.9 3/pack
P1S1S02--4  Pre-Sterilized, PES Material, Pore Size 0.2 μm, 2" 0.34 5.4 4/pack
P1S5D10--1  PES Material, Pore Size 0.45/0.2 μm, 10" 0.35 20 1/pack
P1S5D05--1 PES Material, Pore Size 0.45/0.2 μm, 5" 0.35 12 1/pack
P1S5D04--3  PES Material, Pore Size 0.45/0.2 μm, 4" 0.35 8.6 3/pack
P1S5D02--4  PES Material, Pore Size 0.45/0.2 μm, 2" 0.35 5.4 4/pack
P1S5S10--1  Pre-Sterilized, PES Material, Pore Size 0.45/0.2 μm, 10" 0.35 20 1/pack
P1S5S05--1 Pre-Sterilized, PES Material, Pore Size 0.45/0.2 μm, 5" 0.35 12 1/pack
P1S5S04--3  Pre-Sterilized, PES Material, Pore Size 0.45/0.2 μm, 4" 0.35 8.6 3/pack
P1S5S02--4 Pre-Sterilized, PES Material, Pore Size 0.45/0.2 μm, 2" 0.35 5.4 4/pack
